Reusable Adjustable Steel Square Column Formwork System for Concrete Construction
Our structural steel column formwork effectively replaces traditional wood formwork, significantly reducing pore water pressure and eliminating air bubbles in concrete that commonly occur with wood, plywood, or steel plate alternatives.
The engineered steel slab formwork is designed for precise concrete pouring and shaping, creating optimal rough interfaces for superior construction results.
Product Specifications
Type
Steel formwork
Material
Q235
Yield Strength
Above 110 MPa
Color
Blue, red, customized
Thickness
Customized
Usage
Concrete construction support
Reusable Times
More than 300 times
Certificate
ISO9001
Surface Treatment
Painted
Height
300-3000 mm (Customized)
Width
300-1600 mm (Customized)
Packing
Bundle, bulk, or custom
Production Capacity
1000 tons per month
Key Advantages
- Quick assembly and disassembly
- Extended service lifespan
- Simple and flexible operation
- Superior concrete finish quality
- Cost-effective through reusability

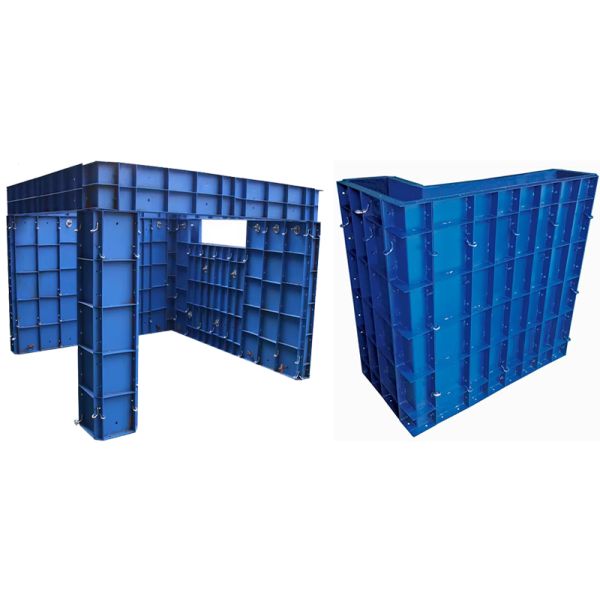

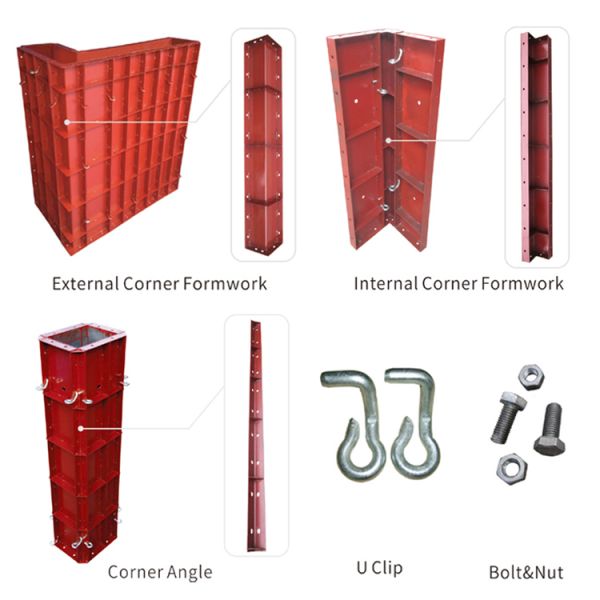

Product Gallery
The steel formwork system is widely utilized in heavy civil construction projects as temporary structural framing for concrete pouring applications.
With over 20 years of manufacturing experience, we provide high-quality steel formwork and accessories for concrete slabs, walls, and columns. Our comprehensive product range ensures you can source all necessary components and parts from a single supplier.
Standard Size Specifications
| Code No. |
Size and Specifications (mm) |
Code No. |
Size and Specifications (mm) |
| TRFP3018 |
300 * 1800 |
TRFP2018 |
200 * 1800 |
| TRFP3015 |
300 * 1500 |
TRFP2015 |
200 * 1500 |
| TRFP3012 |
300 * 1200 |
TRFP2012 |
200 * 1200 |
| TRFP3009 |
300 * 900 |
TRFP2009 |
200 * 900 |
| TRFP3007 |
300 * 750 |
TRFP2007 |
200 * 750 |
| TRFP3006 |
300 * 600 |
TRFP2006 |
200 * 600 |
| TRFP1518 |
150 * 1800 |
TRFP1218 |
125 * 1800 |
| TRFP1515 |
150 * 1500 |
TRFP1215 |
125 * 1500 |
| TRFP1512 |
150 * 1200 |
TRFP1212 |
125 * 1200 |
| TRFP1509 |
150 * 900 |
TRFP1209 |
125 * 900 |
| TRFP1507 |
150 * 750 |
TRFP1207 |
125 * 750 |
| TRFP1506 |
150 * 600 |
TRFP1206 |
125 * 600 |
| TRFP1018 |
100 * 1800 |
TRFP1009 |
100 * 900 |
| TRFP1015 |
100 * 1500 |
TRFP1007 |
100 * 750 |
| TRFP1012 |
100 * 1200 |
TRFP1006 |
100 * 600 |
Contact us with your steel formwork and metal panel requirements to receive immediate pricing and technical support for your construction projects.
