Anti Corrosion Steel Frame Building with 100mm Thickness and High Loadbearing Capacity for Modern Construction

Brand Name : Shunyao Supply Chain

Model Number : Steel formwork

Certification : IS0

Place of Origin : Chengdu , China

Payment Terms : T/T in advance

Delivery Time : 5-15 days

MOQ : 100 PCS

Packaging Details : Bundles

Supply Ability : Excellent

Price : $40-200

Loadbearingcapacity : High

Structure : Frame

Structure Type : Steel Frame Building

Sustainability : Recyclable

Life Span : Around 30~50 Year

Application : Industrial/Commercial

Designflexibility : High

Using Life : 50 Years

Constructionspeed : Fast

Labor Costs : Lower

Connection : Bolts

Costefficiency : Cost-effective compared to concrete

Seismicresistance : Good

Product : Steel Structure

Thickness Of Panel : 50mm, 75mm, 100mm, 150mm, 200mm, 250mm

Contact Now

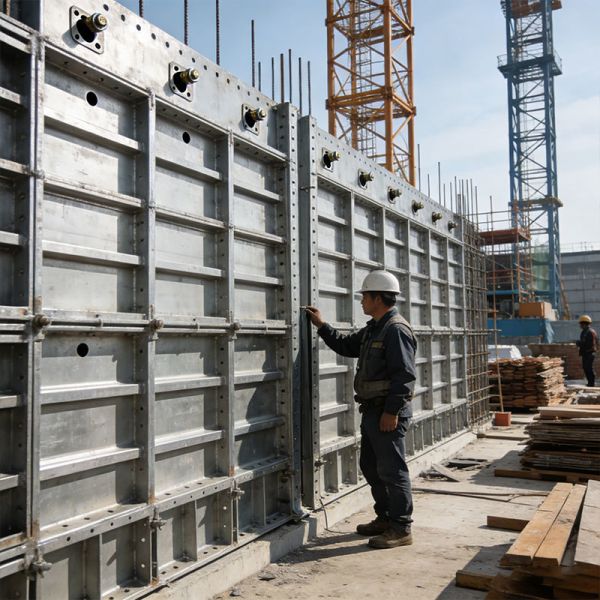

Anti-Corrosion Steel Frame Structure for Modern Concrete Pouring Projects
Steel wall formwork is a specialized modular system developed for modern concrete pouring projects, specifically designed for high-precision forming construction of vertical structures such as building shear walls and retaining walls. The product uses 8mm high-strength wear-resistant steel plates combined with H-beam reinforced frames and undergoes overall hot-dip galvanizing treatment to ensure excellent stability and durability in various construction environments.
Core Technical Parameters
  • Standard Panel Sizes: 1200*3000mm / 1500*3600mm
  • System Stiffness: Maximum deflection ≤ L/600 (L is the panel span)
  • Lateral Pressure Resistance: ≥ 100kN/m², suitable for C70 concrete pouring
  • Forming Accuracy: Wall surface flatness ≤ 1.5mm/2m
  • Service Life: Up to 800 cycles under normal construction conditions
Core Product Advantages
  • Intelligent Construction: Integrated hydraulic automatic alignment system, installation time per panel ≤ 2 minutes, work efficiency increased by 3 times
  • Millimeter-Level Precision: Manufactured using five-axis CNC machining center, panel joint deviation ≤ 0.5mm
  • Exceptional Durability: Special anti-corrosion coating combined with galvanizing treatment, suitable for -40℃ to 150℃ environments
  • Safety and Intelligent Monitoring: Built-in distributed sensor network for real-time monitoring of pouring pressure and deformation data
Innovative Technical Features
  • Adaptive Adjustment Mechanism: Hydraulic synchronization system enables continuous height adjustment from 2.8 to 6.0m
  • Zero-Leakage Sealing System: Four-layer composite seal design ensures no leakage throughout the pouring process
  • Intelligent Temperature Control Module: Phase-change material insulation layer ensures concrete curing quality in low-temperature environments
  • Digital Twin Interface: Supports deep integration with BIM systems for fully digital construction management
Professional Application Areas
  • Core tubes of super high-rise buildings (compatible with hydraulic climbing formwork systems)
  • Protective walls of nuclear facilities
  • Seepage prevention walls for large hydraulic structures
  • Standardized construction of underground utility tunnels
  • Production lines for prefabricated components in modular buildings
Product Specifications
Material Steel, stainless steel
Application Concrete construction
Feature Easy to assemble, high strength, reusable
Warranty 2 Years
Design Style Modern
After-sale Service Online Technical Support, Onsite Installation, Project Solution Capability
Capability 3D model design, graphic design
Place of Origin Chengdu, China
Brand Name Shunyao Supply Chain Steel Frame
Attachment U-bolt, bolts, and nuts
Color Customer Requirements
Size Customer Requirements
Variety Steel formwork system
Type Steel formwork for concrete construction
